Hybrid Plastic Running Track High Elasticity Running Synthetic Track 13mm

Large Image : Hybrid Plastic Running Track High Elasticity Running Synthetic Track 13mm

Product Details:

Model Number:	Please refer to the model numbers in the product catalog

Payment & Shipping Terms:

Minimum Order Quantity:	20KG& 500 sqm
Price:	between 18 and 52 USD
Packaging Details:	20kg/barrel,25kg/barrel,30kg/barrel,200kg/barrel, 300kg/barrel， 25kg/bag
Delivery Time:	Normal delivery time: Shipment within 15 days after order confirmation
Payment Terms:	EXW
Supply Ability:	Monthly supply: 1000–12000 tons&The quantity ranges from 500,000 to 2,000,000 square meters, but it mainly depends on the product.

Contact Now

Detailed Product Description

Features:	Cost-Effective, Good Elasticity, Durable	Name:	Plastic Running Track
Type:	PU+SBR Composite Track	Structure:	PU Bonded SBR Base + EPDM Top
Thickness:	13mm Standard	Top_Layer:	EPDM Spray Coat
Impact_Absorption:	35-48%	Tensile_Strength:	≥0.6 MPa
Service_Life:	8-12 Years	Application:	School, Training, Community
Highlight:	Hybrid Plastic Running Track , High Elasticity Running Synthetic Track , Running Synthetic Track 13mm

Composite Plastic Track&Composite Rubber Track&Hybrid Plastic Track&Synthetic Athletic Track - Composite Type

Key Advantages

High elasticity & durability combined
Breathable yet dense structure
Wide construction adaptability
Recycled or virgin granules
Compliant with World Athletics standards

Product Overview

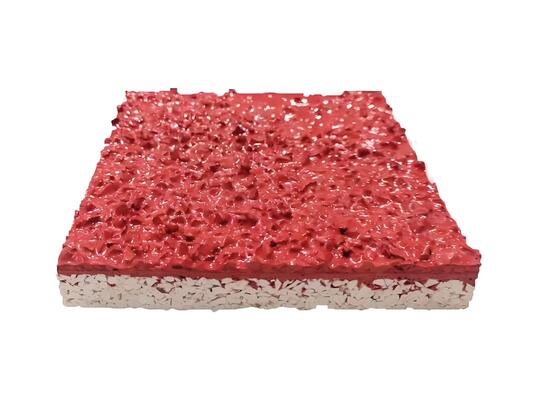

The Composite Running Track is a sports surfacing system that combines the drainage ability of porous tracks with the high resilience of fully rubberized tracks. Its structure consists of a base elastic layer, an intermediate reinforcement layer, and a top wearing layer. The base layer uses single-component polyurethane binder mixed with rubber granules to provide elasticity. The middle layer uses binder with finer granules to increase density and strength. The top layer is sprayed with EPDM or fine rubber granules. This structure offers better rebound and wear resistance while maintaining some permeability.

✅ Ideal for: school sports fields, community jogging trails, sports center training tracks, professional club venues, and projects requiring higher performance with a moderate budget.

Technical Specifications (Compliant with World Athletics Requirements)

Parameter	Value	World Athletics Requirement
Thickness	13mm standard (8mm base + 3mm reinforcement + 2mm top), customizable 10–18mm	Synthetic surface ≥13mm
Impact Absorption	38–48%	35–50%
Vertical Deformation	0.8–2.5mm	0.6–2.5mm
Friction Coefficient (dry/wet)	0.5–0.8	≥0.5 (wet)
Tensile Strength	≥0.7 MPa	≥0.5 MPa
Elongation at Break	≥50%	≥40%
Water Permeability	≈0.5–1.0 mm/min (not fully permeable, but some drainage)	Not mandatory, but no standing water preferred
Environmental Standards	RoHS, REACH, no heavy metals, low VOC	—
Service Life	10–15 years under normal use	—

✅ All data can be supported by third-party test reports (SGS, TÜV, etc.) according to World Athletics (ex-IAAF) recommendations for training and recreational tracks.

System Structure (bottom to top)

Key feature: The elastic layer provides cushioning, the reinforcement layer adds structural integrity, and the top layer ensures slip & wear resistance. More durable than porous tracks, more economical than full rubber tracks.

Granules – Multiple Choices

We offer two sources of granules:

Type	Source	Advantage	Recommended for
Recycled Granules	Recycled tire rubber	Low cost, eco-friendly, adequate elasticity	Community paths, school non-competition areas, economy projects
Virgin Granules	Virgin EPDM or high-strength SBR	Long-lasting color, stable performance, high rubber content	Professional training tracks, premium sports parks, competition projects

✅ Both types can be used in base, reinforcement or top layer. Mixed ratios available to balance cost and performance.

Applications

Kindergarten, primary & secondary school tracks
University training fields
Residential jogging trails & children's play areas
Urban greenways & park running paths
Rooftop leisure sports areas
Professional sports club training venues
Exhibition / temporary event flooring

Project Case Studies (Selected) – Composite Running Track

Country	Project Type	Area	Granule Choice	Year
Ho Chi Minh City, Vietnam	Professional football club training track	2,500 m²	Virgin (EPDM top, UV-resistant)	2024
São Paulo, Brazil	University sports center composite track	4,800 m²	Recycled base + virgin reinforcement & top	2023
Lagos, Nigeria	National Youth Sports Academy	6,200 m²	100% recycled (economy solution)	2024
Dubai, UAE	High-end residential jogging track	1,900 m²	Virgin (high elasticity, heat-resistant)	2025
Johannesburg, South Africa	Secondary school training field	3,500 m²	Recycled base + virgin top	2024

On-site photos & videos available upon request

Shipping & Delivery Guarantee

Packaging:

Granules: Waterproof ton bag + PE inner liner
Binder: 200kg steel drum or 20kg plastic drum (customizable)

Loading: Optimized for 20GP / 40HQ containers; loading plan provided.

Delivery time: 15 days after order confirmation as standard. Due to peak/off seasons, it may extend to 15 days – 1 month – we will inform you in advance.

Documentation: Commercial invoice, packing list, CO, B/L, MSDS, test reports (with legalization if needed).

Logistics: Partnered with international freight forwarders; sea/air/rail/multimodal shipping arranged.

Damage protection: Full inspection before shipment; optional SGS/BV third-party inspection; full insurance coverage; replacement for leakage or drum damage.

Minimum Order Quantity

No MOQ – Whether you need materials for a 10 m² repair or a 10,000 m² full track, we can supply. Sample orders and small trial batches are welcome.

Pre-sales & After-sales Services

Pre-sales

Free sample panel (A4 size, multiple colors) and material samples.
Formula recommendation based on climate, base condition, budget.
Quotation, technical data sheet, construction guide (EN / CN / ES / AR).
Remote video inspection or on-site engineer visit (for large projects).

After-sales

Service	Description
Installation guidance	English construction video, written SOP; on-site technician available (fee negotiable)
Warranty	2–5 years for materials (depending on series), 8 years for structural integrity
Claim response	24h response, provide repair plan or free replacement of defective materials
Spare parts service	10% extra top granules can be ordered with shipment for future repairs
Training	Online mixing & application training for bulk buyers

Q1: What is the difference between composite track and porous track?

→ The composite track has an additional reinforcement layer above the elastic layer, making it denser, with better rebound and higher wear resistance – suitable for high-frequency use – while still retaining some drainage ability.

Q2: Is the composite track suitable for rainy or hot regions?

→ Yes. The base layer still has some porosity to release moisture, reducing blistering risk; the reinforcement layer improves overall durability.

Q3: Does recycled granule affect running feel?

→ No. Recycled granules have slightly lower elasticity but are fine for fitness and school use. We recommend recycled for base layer and virgin for reinforcement & top layers for best cost-performance balance.

Q4: Can I buy only materials without installation service?

→ Yes. We focus on material supply and provide full drawings and guidance for self-installation, or can recommend local contractors.

Q5: What is the MOQ?

→ No minimum. Any quantity from a few drums/bags to thousands of tons.

Q6: What binder packages are available?

→ Standard 200kg steel drum; also 20kg plastic drum for easy handling and small jobs.
