13mm Prefabricated Running Track Microfoam Rubber Jogging Track Lightweight

Large Image : 13mm Prefabricated Running Track Microfoam Rubber Jogging Track Lightweight

Product Details:

Place of Origin:	Huizhou, Guangdong, China
Brand Name:	lida&lvhuan
Certification:	ISO 9001 (Quality Management) ，ISO 14001 (Environmental Management)，CE
Model Number:	Please refer to the model numbers in the product catalog

Payment & Shipping Terms:

Minimum Order Quantity:	20KG& 500 sqm
Price:	between 18 and 52 USD
Packaging Details:	20kg/barrel,25kg/barrel,30kg/barrel,200kg/barrel, 300kg/barrel， 25kg/bag
Delivery Time:	Normal delivery time: Shipment within 15 days after order confirmation
Payment Terms:	EXW
Supply Ability:	Monthly supply: 1000–12000 tons&The quantity ranges from 500,000 to 2,000,000 square meters, but it mainly depends on the product.

Contact Now

Detailed Product Description

Features:	20% Lighter, Structural Load Reduction	Name:	Lightweight Foamed PU Track
Structure:	Low-Density Microfoam + EPDM Top	Thickness:	13mm (10+3mm)
Top_Layer:	Virgin EPDM, 22% Rubber	Weight_per_sqm:	~11 Kg
Impact_Absorption:	40-46%	Service_Life:	10-12 Years
Application:	Rooftop, Elevated Decks, Lightweight
Highlight:	13mm Prefabricated Running Track , Microfoam Rubber Jogging Track , Rubber Jogging Track Lightweight

Lightweight Foamed Full PU Track | Same Strength at 20% Less Weight

Key Advantages: Microfoam structure reduces material density | Up to 20% lighter than standard full PU tracks | Easier transport & installation | No compromise on durability | Virgin EPDM top with 22% rubber content

Product Overview

The Lightweight Foamed Full PU Track is engineered for projects where structural weight matters – rooftop running tracks, elevated sports decks, and buildings with load limitations. The micro‑foaming technology creates a pure PU elastic layer that is significantly less dense than standard solid PU, yet retains excellent tensile strength and tear resistance. A 13mm track weighs approximately 20% less per square metre, reducing dead load on supporting structures. The top layer uses virgin EPDM with 22% rubber content, offering a balance of weight savings and durability.

Ideal for rooftop school tracks, residential tower sports decks, lightweight prefabricated stadium modules, and any elevated sports facility.

Technical Specifications – Weight Focus

Parameter	Value
Thickness	13mm (10mm microfoam + 3mm top)
Density (elastic layer)	≈0.85 g/cm³ (vs 1.05 for standard PU)
Weight per m² (13mm)	≈11 kg (vs ≈13.5 kg for standard)
Impact Absorption	40–46%
Vertical Deformation	0.7–1.7mm
Tensile Strength	≥0.7 MPa
Service Life	10–12 years

All other parameters meet World Athletics training/competition standards.

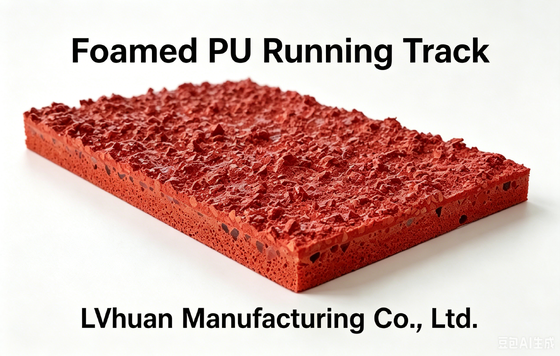

System Structure – Lightweight

Low‑density microfoam elastic layer – 10mm: pure PU with optimised cell structure for weight reduction
Standard top layer – 3mm: pure PU slurry + virgin EPDM (22% rubber content)

Key feature: Lighter track reduces structural load – perfect for retrofit projects on existing buildings.

Recommended EPDM Grade

Grade	Rubber Content	Why
Lightweight standard	22%	Balance of weight, durability, and UV resistance

Applications

Rooftop school competition tracks
Residential tower sports decks
Lightweight prefabricated stadium modules
Elevated pedestrian/sports bridges

Case Studies (Lightweight)

Country	Project	Area	Weight saving	Year
Singapore	Rooftop international school track	2,500 m²	22%	2024
Hong Kong	Residential tower sports deck	1,800 m²	20%	2025
Netherlands	Lightweight stadium extension	3,200 m²	21%	2024

Shipping & MOQ

No MOQ. Lighter weight also reduces shipping cost per m². Lead time 15–25 days.

FAQ – Lightweight

Q: Is the lighter track less durable?
→ No. The microfoam structure is engineered for compression resistance. Wear life equals standard full PU.

Q: Can it be installed on wooden roof decks?
→ Yes, with proper waterproofing and a suitable base layer (plywood or lightweight concrete). Consult our engineers.

Contact: zhu@ldsflooring.com | WhatsApp +86 18928360800
