13mm Permeable Running Track All Weather Synthetic Rubber Track Breathable

Large Image : 13mm Permeable Running Track All Weather Synthetic Rubber Track Breathable

Product Details:

Place of Origin:	Huizhou, Guangdong, China
Brand Name:	lida&lvhuan
Certification:	ISO 9001 (Quality Management) ，ISO 14001 (Environmental Management)，CE
Model Number:	Please refer to the model numbers in the product catalog

Payment & Shipping Terms:

Minimum Order Quantity:	20KG& 500 sqm
Price:	between 18 and 52 USD
Packaging Details:	20kg/barrel,25kg/barrel,30kg/barrel,200kg/barrel, 300kg/barrel， 25kg/bag
Delivery Time:	Normal delivery time: Shipment within 15 days after order confirmation
Payment Terms:	EXW
Supply Ability:	Monthly supply: 1000–12000 tons&The quantity ranges from 500,000 to 2,000,000 square meters, but it mainly depends on the product.

Contact Now

Detailed Product Description

Features:	Breathable, Cost-Effective, Quick Drainage	Name:	Permeable Running Track
Type:	Water-Permeable PU Track	Structure:	PU Bonded EPDM + SBR Base Layer
Thickness:	13mm Standard	Drainage:	Permeable, No Ponding
Impact_Absorption:	35-45%	Service_Life:	8-10 Years
Application:	Training, School, Community
Highlight:	13mm Permeable Running Track , All Weather Synthetic Rubber Track , Synthetic Rubber Track Breathable

Permeable PU Running Track&Porous Track&Breathable Track&Cost-Effective Solution&All-Weather Running Track&Spray Coat Track&Recycled Rubber Track&Synthetic Track&

Breathable Porous Running Track | Cost-Effective All-Weather Sports Surface

Key Advantages: Water‑permeable & breathable | Moderate elasticity | Fast installation | Recycled or virgin granules | Compliant with World Athletics standards

Product Overview

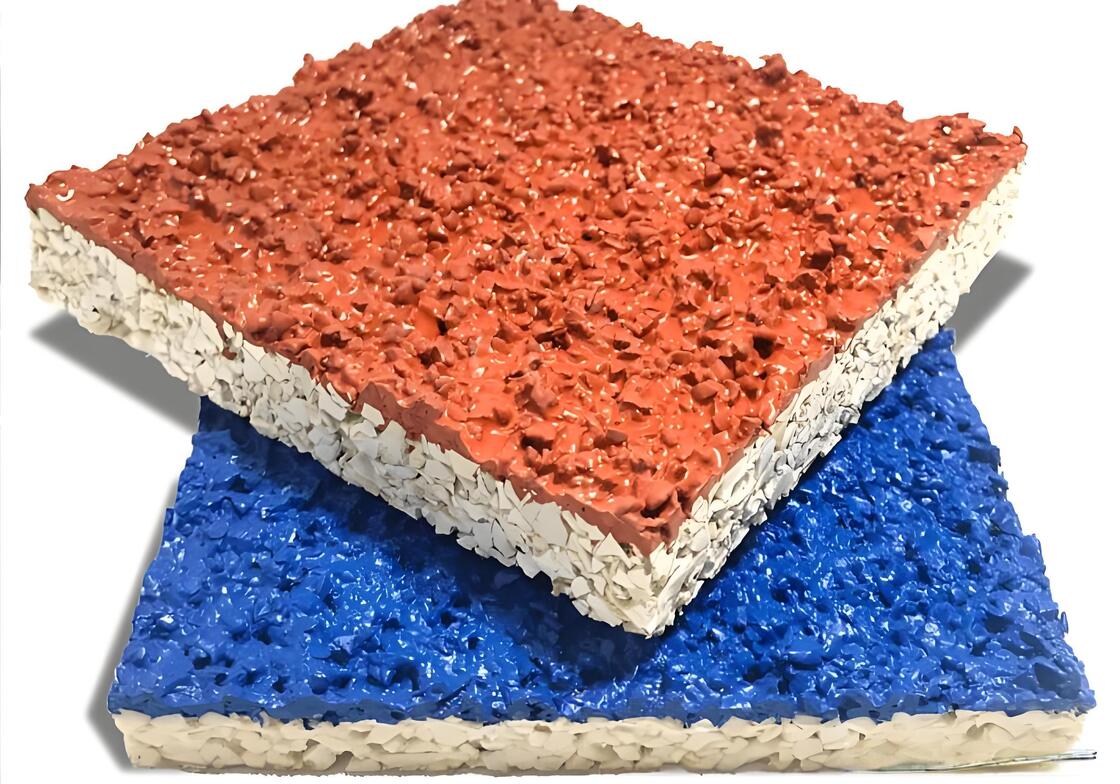

The Breathable Porous Running Track is a sports surfacing system characterized by its open‑cell structure. The base layer is a mixture of single‑component polyurethane binder and rubber granules, while the top layer consists of EPDM or fine rubber granules sprayed with binder. Its unique porosity allows rainwater to drain quickly and water vapor to escape naturally, preventing blistering or delamination.

Ideal for school sports fields, community jogging trails, park pathways, training tracks at sports centers – non‑competition venues (can also meet local competition standards).

Technical Specifications (Compliant with World Athletics Requirements)

Parameter	Value	World Athletics Requirement
Thickness	13mm standard (10mm base + 3mm top), customizable 8–20mm	Synthetic surface ≥13mm
Impact Absorption	35–45%	35–50%
Vertical Deformation	0.6–2.5mm	0.6–2.5mm
Friction Coefficient (dry/wet)	0.5–0.8	≥0.5 (wet)
Tensile Strength	≥0.5 MPa	≥0.5 MPa
Elongation at Break	≥40%	≥40%
Water Permeability	≥2.0 mm/min	Required for porous systems
Environmental Standards	RoHS, REACH, no heavy metals, low VOC	—
Service Life	8–12 years under normal use	—

All data can be supported by third‑party test reports (SGS, TÜV, etc.) according to World Athletics (ex‑IAAF) recommendations for training and recreational tracks.

System Structure (bottom to top)

13mm Permeable Running Track All Weather Synthetic Rubber Track Breathable 0

Key feature: honeycomb micro‑pores allow water and air passage, heat does not accumulate.

Granules – Multiple Choices

We offer two sources of granules:

Type	Source	Advantage	Recommended for
Recycled Granules	Recycled tire rubber	Low cost, eco‑friendly, adequate elasticity	Community paths, school non‑competition areas
Virgin Granules	Virgin EPDM or high‑strength SBR	Long‑lasting color, stable performance, high rubber content	Professional training tracks, premium sports parks

Both types can be used in base or top layer. Mixed ratios available to balance cost and performance.

Applications

Kindergarten, primary & secondary school tracks
University training fields
Residential jogging trails & children’s play areas
Urban greenways & park running paths
Rooftop leisure sports areas
Exhibition / temporary event flooring

Project Case Studies (Selected)

Country	Project Type	Area	Granule Choice	Year
Manila, Philippines	International school track	3,200 m²	Virgin (EPDM top)	2024
Nairobi, Kenya	Community stadium	5,000 m²	Recycled base + virgin top	2023
Riyadh, Saudi Arabia	Park jogging trail	2,800 m²	100% recycled	2024
Lima, Peru	University training track	4,500 m²	Virgin (UV‑resistant)	2025

On‑site photos & videos available upon request.

Shipping & Delivery Guarantee

Packaging:
- Granules: Waterproof ton bag + PE inner liner
- Binder: 200kg steel drum or 20kg plastic drum (customizable)
Loading: Optimized for 20GP / 40HQ containers; loading plan provided.
Delivery time: 15 days after order confirmation as standard. Due to peak/off seasons, it may extend to 15 days – 1 month – we will inform you in advance.
Documentation: Commercial invoice, packing list, CO, B/L, MSDS, test reports (with legalization if needed).
Logistics: Partnered with international freight forwarders; sea/air/rail/multimodal shipping arranged.
Damage protection: Full inspection before shipment; optional SGS/BV third‑party inspection; full insurance coverage; replacement for leakage or drum damage.

Minimum Order Quantity

No MOQ – Whether you need materials for a 10 m² repair or a 10,000 m² full track, we can supply. Sample orders and small trial batches are welcome.

Pre‑sales & After‑sales Services

Pre‑sales

Free sample panel (A4 size, multiple colors) and material samples.
Formula recommendation based on climate, base condition, budget.
Quotation, technical data sheet, construction guide (EN / CN / ES / AR).
Remote video inspection or on‑site engineer visit (for large projects).

After‑sales

Service	Description
Installation guidance	English construction video, written SOP; on‑site technician available (fee negotiable)
Warranty	2–5 years for materials (depending on series), 8 years for structural integrity
Claim response	24h response, provide repair plan or free replacement of defective materials
Spare parts	10% extra top granules can be ordered with shipment for future repairs
Training	Online mixing & application training for bulk buyers

FAQ

Q1: Is the porous track suitable for rainy or hot regions?
→ Yes. Pores drain water quickly and prevent heat buildup, reducing blistering risk.

Q2: Does recycled granule affect running feel?
→ No. Recycled granules have slightly lower elasticity but are fine for fitness and school use. We recommend recycled for base + virgin for top layer.

Q3: Can I buy only materials without installation service?
→ Yes. We focus on material supply; we provide full drawings and guidance for self‑installation, or can recommend local contractors.

Q4: What is the MOQ?
→ No minimum. Any quantity from a few drums/bags to thousands of tons.

Q5: Do you provide samples for testing?
→ Free A4 color panel. For large orders, 1‑2 drums of binder + granule samples can be sent for trial paving.

Q6: What binder packages are available?
→ Standard 200kg steel drum; also 20kg plastic drum for easy handling and small jobs.
