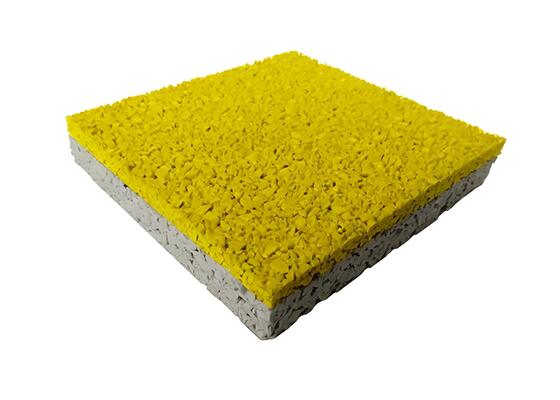

Customizable EPDM Rubber Flooring 10mm - 20mm EPDM Playground Flooring

• Seamless, joint‑free elastic surface
• Excellent impact absorption – safe for falls
• Fixed wearing layer thickness of 6mm – all additional thickness comes from the base layer
• Wide rubber content range from 8% to 30% – higher content gives better UV resistance and color retention
• Choice of recycled or virgin rubber granules for base layer
• Wide range of bright, long‑lasting colors
• Breathable and permeable options available
• Suitable for playgrounds, fitness trails, landscaping, and sports areas
• Compliant with RoHS, REACH, and PAHs limits

The EPDM Pour‑in‑Place Surface System is a seamless, monolithic elastic flooring system made by mixing EPDM granules with polyurethane (PU) binder on site, then troweling and curing to form a uniform rubber surface. Unlike prefabricated rolls or tiles, this system has no joints, adapts to any shape, and provides excellent shock absorption – ideal for fall‑protection areas.

The system consists of:

• A base layer: rubber granules (recycled SBR, virgin SBR, or virgin EPDM) + PU binder for elasticity, drainage, and cost saving. Thickness can vary from 0 to 24mm.

• A wearing layer: colored EPDM granules + clear or colored PU binder. Thickness is fixed at 6mm.

The wearing layer thickness is fixed at 6mm to ensure consistent surface performance and color appearance. All additional thickness required for higher fall protection or cushioning is achieved by increasing the base layer thickness. Total system thickness = wearing layer (6mm) + base layer (0‑24mm) = 6‑30mm.

The most critical quality factors are the rubber content of the EPDM granules (higher = better UV resistance and color life) and the quality of the PU binder (100% solid, solvent‑free, UV stable). Our system uses virgin EPDM granules with rubber content from 8% to 30%, and high‑performance PU binders that do not yellow under sunlight.

✅ Ideal for: children's playgrounds, park fitness trails, rooftop gardens, school activity zones, swimming pool decks, gym exercise areas, and landscape pathways.

✅ Key advantage over EPDM rolls or tiles: seamless construction – no edges to lift, no water ingress at joints, and custom shapes and colors are easy to create.

✅ All data can be supported by third‑party test reports (SGS, TÜV, etc.) according to EN 1177 (fall protection) and EN 14877 (sports surfaces).

1. EPDM Rubber Content – The #1 Performance Factor

   Our EPDM granules are available with rubber content from 8% to 30%. Higher rubber content means less filler (CaCO₃) and more pure EPDM polymer, directly affecting UV resistance, color retention, elasticity, and service life.

   Grade	Rubber Content	UV Resistance (QUV)	Color Fading after 3 years outdoor	Recommended for
   Economy	8‑12%	Low (300h)	Significant fading	Indoor or temporary use, very low budget
   Standard	12‑18%	Moderate (600h)	Noticeable fading	Indoor, shaded outdoor, moderate sun (short life acceptable)
   Premium	18‑25%	Good (1000h)	Slight fading	Outdoor playgrounds, school tracks, moderate sun regions
   Ultra (recommended)	25‑30%	Excellent (2000h)	Minimal fading	High‑sun regions (Middle East, Africa, SE Asia, Australia, Latin America)

   ✅ For any outdoor application, we strongly recommend Premium or Ultra grade to ensure long‑term color stability and safety. Higher rubber content directly equals longer color life and slower aging.

2. PU Binder Quality

   Our binders are:

   • 100% solids – no solvents, low VOC

   • UV stable – aliphatic systems available that do not yellow

   • Good adhesion to both recycled and virgin rubber granules

   • Flexible – moves with the rubber surface, no cracking

   We supply both:

   • Standard binder for general use (aromatic, cost‑effective)

   • UV‑stable binder for high‑sun areas (aliphatic, no yellowing, higher durability)

3. Base Layer Options

   The base layer (thickness 0‑24mm) can be made with:

   • Recycled black SBR granules – most economical, good elasticity

   • Virgin SBR granules – higher consistency, lower PAHs, better performance

   • Virgin EPDM granules (any color) – best for visible base layer applications (e.g., two‑color system) or when higher uniformity is required

   We supply all options. Specify your requirement.



Key feature: Seamless, joint‑free construction. The wearing layer is always 6mm – this guarantees consistent color, texture, and wear resistance. The base layer thickness is adjusted from 0 to 24mm to meet different fall height requirements or cushioning needs. Permeable or non‑permeable options available.

We offer a wide range of standard colors, all available in Economy, Standard, Premium, or Ultra rubber content grades:

Custom colors available on request (MOQ may apply).

• Children's playground safety surfaces (critical fall height up to 4.5m with 30mm total thickness)
• Park and community fitness trails
• Rooftop gardens and terraces
• School activity zones and sports courts
• Pool decks and wet areas
• Gym exercise zones and stretching areas
• Landscape pathways and decorative paving
• Animal enclosures (non‑toxic, easy to clean)

On‑site photos & videos available upon request

Packaging:

• EPDM granules (wearing layer): 25kg woven bags with PE liner, or 500kg/1000kg ton bags

• Base layer granules (recycled or virgin): 25kg bags or 500kg/1000kg ton bags

• PU binder (A+B components): 20kg plastic pails or 200kg steel drums

Loading: Optimized for 20GP / 40HQ containers.

• 25kg bags: approx. 22 tons per 20GP

• Ton bags: approx. 20 tons per 20GP

Delivery time: 15 days after order confirmation as standard. Due to peak/off seasons, it may extend to 15 days – 1 month – we will inform you in advance.

Documentation: Commercial invoice, packing list, CO, B/L, MSDS, test reports (EN 1177, PAHs, UV resistance, rubber content).

Damage protection: Full inspection before shipment; optional SGS/BV third‑party inspection; replacement for damaged or non‑conforming material.

No MOQ – Small orders for sample areas or repairs are welcome. Sample kits (1 bag EPDM + 1 pail binder) available.

Free sample A4 swatch, 200g EPDM sample, and 100g binder sample for testing.

Thickness recommendation based on required fall height (base layer thickness = total thickness – 6mm).

Rubber content recommendation based on project location (UV intensity).

Quotation, technical data sheet, mixing ratio guide, installation manual (EN / CN / ES / AR).

Color matching service for custom colors.
