Water Based Cushioned Acrylic Surface Breathable Tennis Court Surfaces 8mm

Large Image : Water Based Cushioned Acrylic Surface Breathable Tennis Court Surfaces 8mm

Product Details:

Place of Origin:	Huizhou, Guangdong, China
Brand Name:	lida&lvhuan
Certification:	ISO 9001 (Quality Management) ，ISO 14001 (Environmental Management)，CE
Model Number:	Please refer to the model numbers in the product catalog

Payment & Shipping Terms:

Minimum Order Quantity:	20KG& 500 sqm
Price:	between 7.4and 37USD ,Subject to actual raw material costs and exchange rates
Packaging Details:	20kg/barrel,30kg/barrel, Weight can be tailored based on specific requirements.
Delivery Time:	Normal delivery time: Shipment within 15 days after order confirmation
Payment Terms:	EXW
Supply Ability:	Monthly supply: 1000–12000 tons&The quantity ranges from 500,000 to 2,000,000 square meters, but it mainly depends on the product.

Contact Now

Detailed Product Description

Features:	Maximum Comfort, Joint Protection	Name:	Cushioned Acrylic Surface
Type:	8mm Premium Cushioned System	Structure:	Rubber Cushion + Acrylic Top
Thickness:	8mm Total	Application:	Senior Players, Professional Clubs
Service_Life:	10-12 Years
Highlight:	Water Based Cushioned Acrylic Surface , Cushioned Acrylic Surface Breathable , Tennis Court Surfaces 8mm

Maximum Cushion Elastic Acrylic (8mm Total Thickness)Best For: Senior Players, Rehabilitation Centres, High‑Impact Sports, Public Courts With Injury‑Prevention Focus

Key Advantages:

Up to 8 mm total system thickness (6 mm rubber + 2 mm acrylic)
Shock absorption up to 50% (ASTM F2157) – best in class for acrylic
Water‑based, breathable, low VOC
Reduces knee, ankle, and lower back stress by ~30‑40%
Ideal for tennis, basketball, multi‑sport, and senior fitness courts

Product Overview

The Maximum Cushion Elastic Acrylic system is the thickest and most protective variant in our elastic acrylic range. It consists of a 6 mm rubber‑acrylic elastic layer (applied in multiple coats) followed by 2 mm of colour and texture coats, reaching a total thickness of 8 mm. This thickness provides exceptional impact absorption (up to 50% by ASTM F2157) – comparable to many prefabricated rubber surfaces – while retaining the breathability and fast‑drying properties of water‑based acrylic. The rubber particles are virgin EPDM (recommended for thick layers to prevent long‑term degradation). The final surface meets ITF Category 2‑3 ball bounce and remains fully porous.

✅ Ideal for: senior sports centres, rehabilitation fitness courts, public parks with high daily traffic, tennis clubs prioritising player well‑being, and multi‑sport schools where children and seniors play together.

Technical Specifications – Maximum Cushion

Parameter	Value
Total system thickness	8 mm (6 mm elastic + 2 mm colour/texture)
Elastic layer rubber	Virgin EPDM (0.5‑1.0 mm fine granules)
Shock absorption (ASTM F2157)	40–50%
ITF Court Pace Rating	Category 2–3 (medium‑fast to medium)
Slip resistance (wet)	≥0.6 (textured finish)
UV resistance	Excellent – 8‑10 years colour retention
Service life	10‑12 years

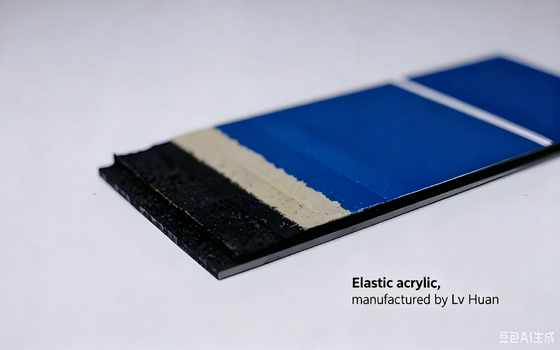

System Structure (8 mm total)

Primed asphalt or concrete base
Elastic layer (6 coats of rubber‑acrylic mix, each ~1 mm) – builds cushioning
Acrylic mid coats (2–3 coats) – seals the rubber and provides smoothness
Acrylic colour top coat + texture sand (1 coat) – colour and slip resistance
Optional clear coat – extra UV protection

Why Choose Maximum Cushion?

Player type / court use	Recommended thickness	Benefit
Seniors (60+) / rehab	6–8 mm	Maximum joint protection
Junior competitive players	4–5 mm	Balanced cushion and speed
Public parks (mixed age)	5–8 mm	Injury prevention for all
Professional tennis	2–4 mm	Faster pace, less energy loss

Applications

Senior sports and wellness centres
Physical rehabilitation fitness courts
Public park tennis/basketball courts (high traffic, all ages)
Multi‑sport schools with senior and junior programmes
Clubs wanting to market “injury‑reduction" surface

Case Studies – Maximum Cushion

Country	Project	Area	Total thickness	Rubber type	Year
Germany	Senior sports & rehab centre	500 m²	8 mm	Virgin EPDM	2024
Canada	Public park multi‑sport court	600 m²	7 mm	Virgin EPDM	2025
Japan	Tennis club (40+ membership)	2 courts	8 mm	Virgin EPDM	2024

Packaging & Shipping

Rubber granules (virgin EPDM): 25 kg bags
Acrylic coats: 20 kg / 25 kg pails
Lead time: 20–25 days
No MOQ

FAQ – Maximum Cushion

Q: Does 8 mm thickness affect ball bounce?
→ No. ITF testing confirms that elastic layers up to 6 mm do not significantly alter ball rebound. The acrylic top coats restore consistent bounce.

Q: Is it suitable for outdoor use all year?
→ Yes. The system is fully porous, UV‑stable, and resistant to freeze‑thaw cycles.
