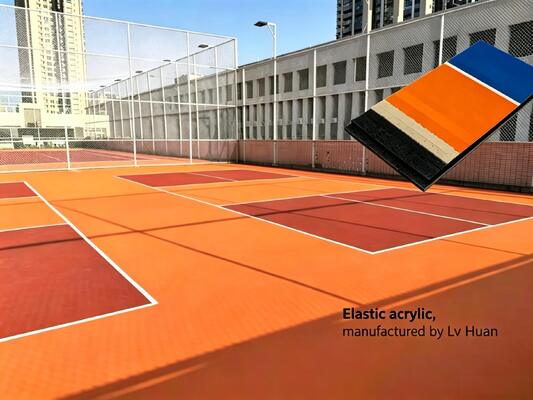

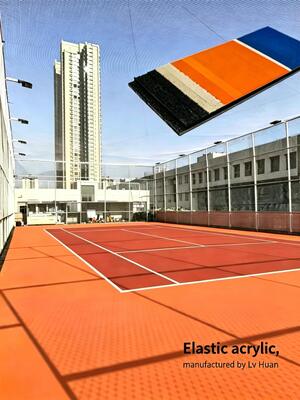

4mm - 8mm EPDM Surface UV Resistant Sports Court Surface For Desert, Tropical, And High Altitude Regions

Large Image : 4mm - 8mm EPDM Surface UV Resistant Sports Court Surface For Desert, Tropical, And High Altitude Regions

Product Details:

Place of Origin:	Huizhou, Guangdong, China
Brand Name:	lida&lvhuan
Certification:	ISO 9001 (Quality Management) ，ISO 14001 (Environmental Management)，CE
Model Number:	Please refer to the model numbers in the product catalog

Payment & Shipping Terms:

Minimum Order Quantity:	20KG& 500 sqm
Price:	between 7.4and 37USD ,Subject to actual raw material costs and exchange rates
Packaging Details:	20kg/barrel,30kg/barrel, Weight can be tailored based on specific requirements.
Delivery Time:	Normal delivery time: Shipment within 15 days after order confirmation
Payment Terms:	EXW
Supply Ability:	Monthly supply: 1000–12000 tons&The quantity ranges from 500,000 to 2,000,000 square meters, but it mainly depends on the product.

Contact Now

Detailed Product Description

Features:	UV Resistant, Heat Stable, Premium	Name:	EPDM Surface
Type:	High-UV Cushioned System	Structure:	EPDM Cushion + UV-Stable Acrylic
Thickness:	4-8mm	Application:	Desert, Tropical, High-UV Regions
Service_Life:	10-12 Years
Highlight:	4mm EPDM Surface , 8mm EPDM Surface , UV Resistant Sports Court Surface

Premium EPDM Elastic Acrylic (High‑UV & Tropical Climates)Best for: Desert, tropical, and high‑altitude regions with intense sun

Key Advantages:

Elastic layer uses 100% virgin EPDM (no recycled rubber) – UV life 8‑10 years
Total thickness 5‑7 mm – high shock absorption (30‑45%)
EPDM granules available in light colours to reflect heat (grey, beige)
No hardening, fading, or cracking even in intense sun
Water‑based, breathable, ITF Category 1‑2 (medium‑fast to fast)

Product Overview
The Premium EPDM Elastic Acrylic system is engineered for high‑UV climates – the Middle East, Africa, Southeast Asia, Australia, and Latin America. Unlike recycled SBR, which hardens and cracks after 3‑5 years of direct sun, virgin EPDM rubber contains built‑in UV stabilisers that resist degradation. The elastic layer is built to 4‑6 mm thickness using fine (0.5‑1.0 mm) EPDM granules mixed with a water‑based acrylic binder. Light‑coloured EPDM (grey, beige, light green) reflects up to 30% of solar heat, keeping the surface cooler. The system meets ITF Category 1‑2 (medium‑fast to fast) for competitive play.

✅ Ideal for: tennis academies in desert climates, international schools in tropical regions, public parks in high‑sun areas, and any outdoor court requiring 10+ year colour and performance stability.

Technical Specifications – Premium EPDM

Parameter	Value
Total system thickness	5–7 mm (4‑6 mm elastic + 1 mm colour)
Elastic layer rubber	100% virgin EPDM (0.5‑1.0 mm)
UV resistance (QUV)	>2000h no significant degradation
Colour retention (top coat)	8‑10 years
Surface temperature vs dark colour	5‑10°C lower with light EPDM
Shock absorption	30–45%
Service life	10‑12 years

Why Virgin EPDM for High‑Sun Regions?

Property	Recycled SBR	Virgin EPDM
UV life (direct sun)	3‑5 years	8‑10+ years
Colour fading	Severe after 2 years	Minimal after 8 years
Hardening / cracking	Yes, after 3 years	No
Heat absorption (dark)	High	Lower (light colours available)
Cost	Low	High (approx. 2‑3x)

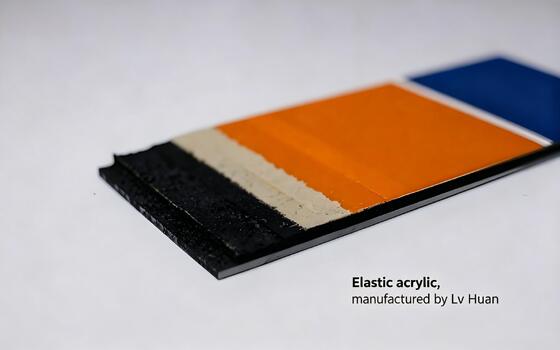

System Structure (Premium, 6 mm total)

Asphalt base (cured, clean)
EPDM‑acrylic elastic layer (4‑5 coats, total 5 mm) – light grey EPDM recommended
Acrylic mid coats (2 coats) – seals and levels
Acrylic colour top coat + texture (1 coat) – green, blue, or other
Optional clear coat – extra UV protection

Applications – High‑sun regions

Tennis academies in desert climates (UAE, Saudi, Egypt)
International schools in tropical zones (Thailand, Vietnam, Brazil)
Public parks in Australia, Southern Europe, California
Professional clubs requiring 10+ year surface life

Case Studies – Premium EPDM Elastic Acrylic

Country	Project	Area	Thickness	EPDM colour	Year
Qatar	Tennis academy (4 courts)	4 courts	6 mm	Light grey	2024
Thailand	International school court	500 m²	5 mm	Beige	2025
Australia	Public park tennis (coastal)	2 courts	6 mm	Light green	2024

Packaging & Shipping

Virgin EPDM granules: 25 kg bags, any RAL colour available
Acrylic coats: 20 kg / 25 kg pails
Lead time: 20‑25 days
No MOQ

FAQ – Premium EPDM

Q: Is EPDM worth the extra cost in high‑sun regions?
→ Yes. Recycled SBR may need replacement after 4‑5 years, while EPDM lasts 10+ years. The total cost of ownership is often lower with EPDM.

Q: Do light‑coloured EPDM granules affect ball visibility?
→ No. The top colour coat determines the final court colour. The light elastic layer only helps with heat reflection, not the playing surface colour.
